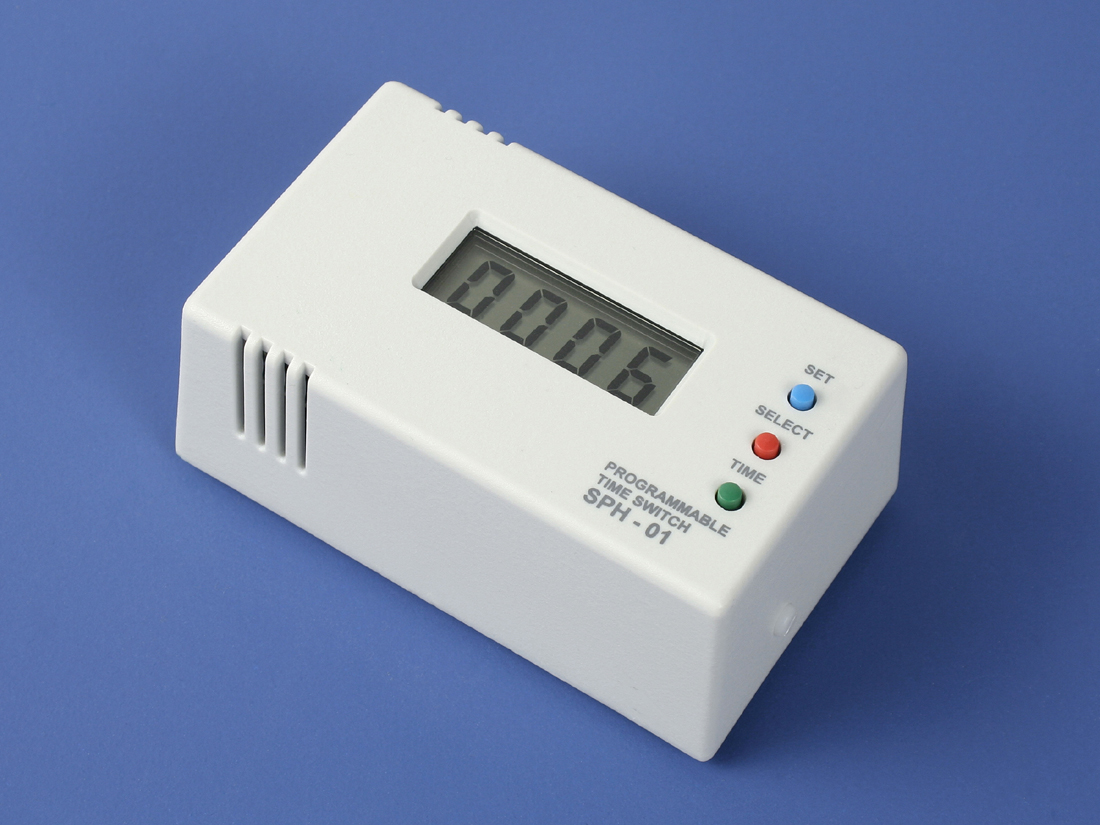

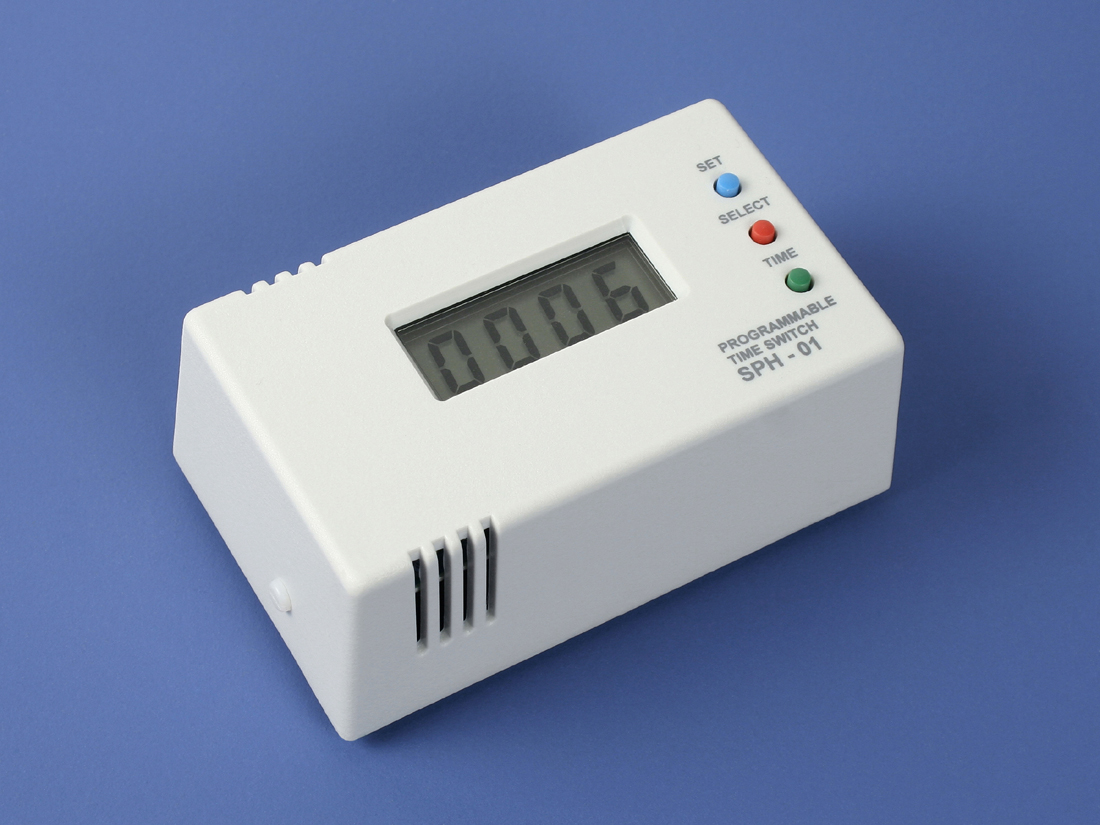

Programmable switch timers SPH 01

Basic technical and qualitative characteristics

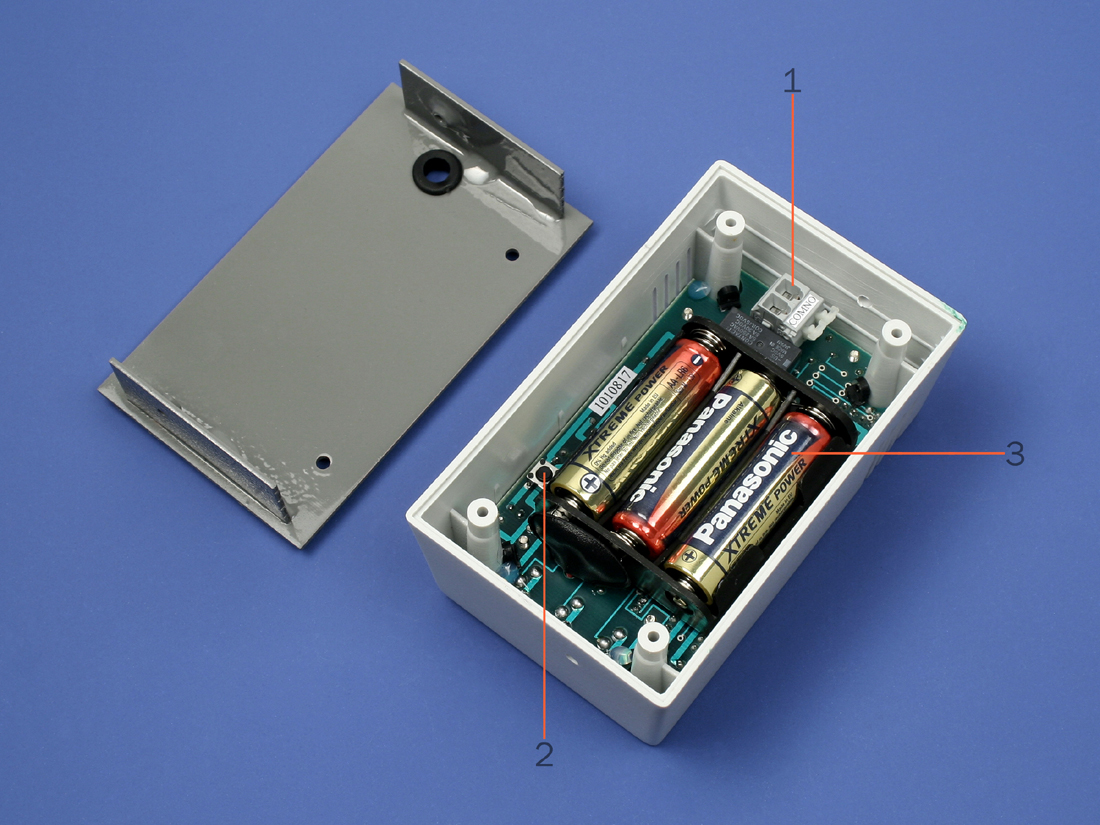

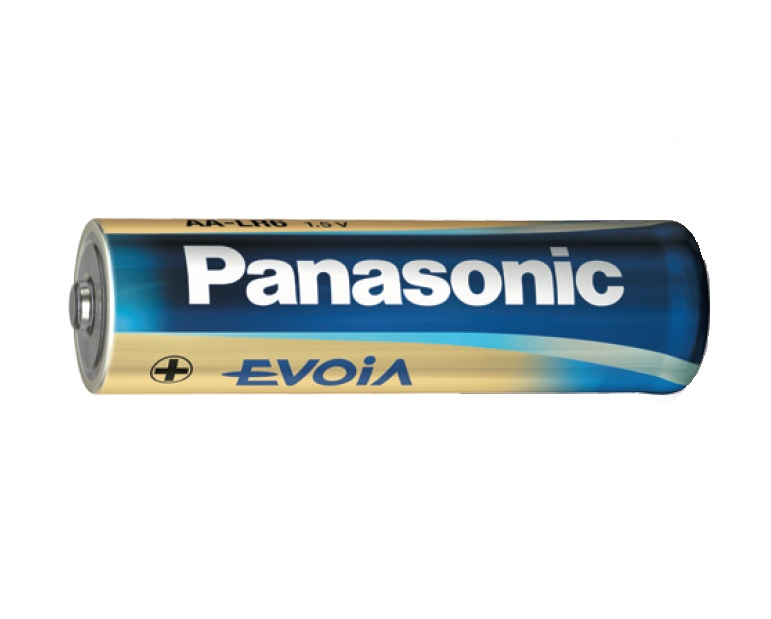

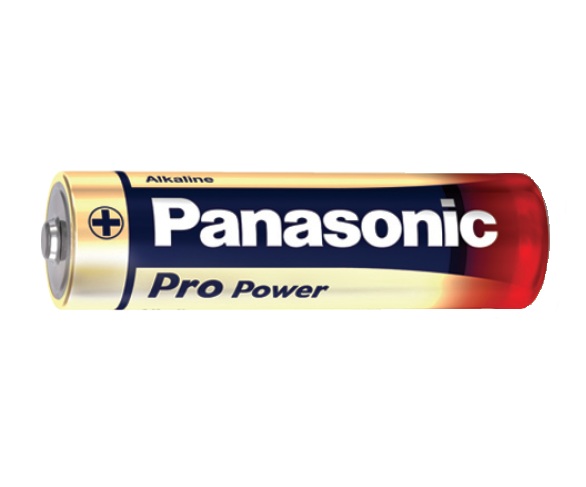

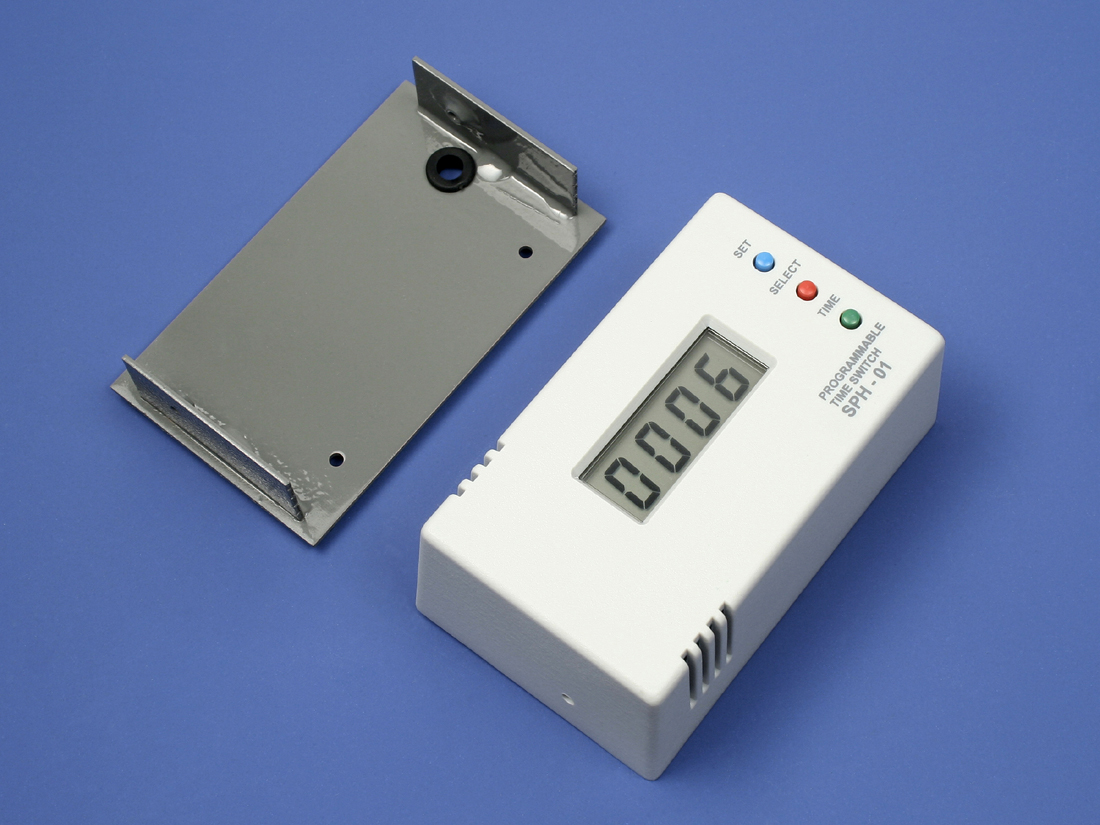

SPH-01 is a programmable electronic timer used for switching loads up to 5A 250VAC or 30VDC with power input up to 1250VA or 150W. Values are stated for resistive load at cos f = 1. SPH-01 has a daily (8 times closture/switch off) or weekly program differentiating working days and weekends (4 times closture/switch off for working days and 4 times closture/switch off for weekends). SPH-01 also has the operating hours counter.  When putting SPH-01 into operation, it is recommended not to use regular batteries, which may leak and damage the device. It is suggested to always use alkaline batteries. If the device gets damaged as a result of battery leakage, no guarantee can be applied. SPH-01 is a timer designed to be mounted on the wall; it is independent of power supply, with self-powered supply - three alkaline batteries 1.5 V size AA (Mignon). SPH-01 is designed to be installed indoors in the buildings, not outdoors. Detailed instructions for installation can be found under “Technical support” - manual for switch timer SPH-01. The programmable switch timer comes with three pieces of batteries, two fasteners and mounting screws.

Other characteristics:

• Digital illustration of time, operation hours and the output condition on a LCD display
• Three control buttons on the front panel and the reset button in the battery compartment
• Setting the regime for daily or weekly hours
• Time programming step is 1 minute
• Operating hours step is 1 hour
• Simple handling and programming
